SV40 1: pBSSVD2005

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: SV40 1: pBSSVD2005
出品公司: 爱迪基因
目录编号: 21826
存储实验室: David Ron

载体骨架基本信息
载体名称: Bluescribe
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: 3200 bp
完整质粒大小: --
载体修饰: --
载体类型: 哺乳细胞表达
筛选标记: --
高拷贝/低拷贝: --
生长条件: 37 ℃

插入基因信息
插入基因名称: SV40 Large T,Simian virus-40 large-T antigen
物种来源: 猿猴病毒
插入大小: 2800 bp
基因突变: likely expresses aa109-708 of the large T antigen
GenBank编号 --
启动子 --
标签/融合蛋白: --
克隆方法: --
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 T3
3' 测序引物 T7

文献引用方法
材料和方法部分: SV40 1: pBSSVD2005 was a gift from David Ron (Addgene plasmid # 21826 ; http://n2t.net/addgene:21826 ; RRID:Addgene_21826)

载体图谱质粒图谱和多克隆位点信息

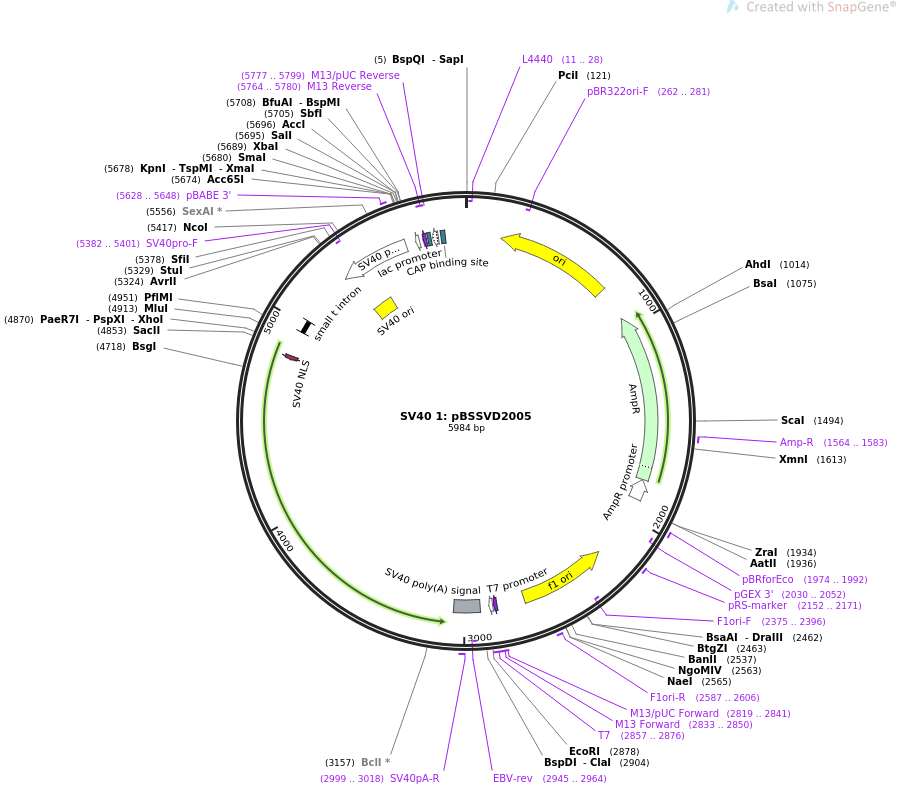

SV40 1-pBSSVD2005质粒图谱

载体简介

载体序列

LOCUS       SV40 1: pBSSVD2005         5984 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    SV40 1: pBSSVD2005
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5984)
  TITLE     SV40 large T antigen for immortalizing cells
REFERENCE   2  (bases 1 to 5984)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..5984
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(11..28)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(182..770)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(262..281)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(941..1801)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     1564..1583
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(1802..1906)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     1974..1992
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(2030..2052)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     2152..2171
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     rep_origin      complement(2238..2693)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2375..2396)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2587..2606
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     2819..2841
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     2833..2850
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     2834..2850
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     2857..2876
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        2857..2875
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     polyA_signal    2921..3055
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2945..2964)
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     primer_bind     2999..3018
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     CDS             complement(4809..4829)
                     /codon_start=1
                     /product="nuclear localization signal of SV40 (simian virus
                     40) large T antigen"
                     /label=SV40 NLS
                     /translation="PKKKRKV"
     intron          4959..5024
                     /label=small t intron
                     /note="SV40 (simian virus 40) small t antigen intron"
     promoter        complement(5314..5671)
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     rep_origin      5328..5463
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(5382..5401)
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     primer_bind     5628..5648
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     promoter        complement(5725..5743)
                     /label=T3 promoter
                     /note="promoter for bacteriophage T3 RNA polymerase"
     primer_bind     complement(5764..5780)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(5764..5780)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(5777..5799)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    5788..5804
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(5812..5842)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    5857..5878
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
ORIGIN
        1 cttccgcttc ctcgctcact gactcgctgc gctcggtcgt tcggctgcgg cgagcggtat
       61 cagctcactc aaaggcggta atacggttat ccacagaatc aggggataac gcaggaaaga
      121 acatgtgagc aaaaggccag caaaaggcca ggaaccgtaa aaaggccgcg ttgctggcgt
      181 ttttccatag gctccgcccc cctgacgagc atcacaaaaa tcgacgctca agtcagaggt
      241 ggcgaaaccc gacaggacta taaagatacc aggcgtttcc ccctggaagc tccctcgtgc
      301 gctctcctgt tccgaccctg ccgcttaccg gatacctgtc cgcctttctc ccttcgggaa
      361 gcgtggcgct ttctcatagc tcacgctgta ggtatctcag ttcggtgtag gtcgttcgct
      421 ccaagctggg ctgtgtgcac gaaccccccg ttcagcccga ccgctgcgcc ttatccggta
      481 actatcgtct tgagtccaac ccggtaagac acgacttatc gccactggca gcagccactg
      541 gtaacaggat tagcagagcg aggtatgtag gcggtgctac agagttcttg aagtggtggc
      601 ctaactacgg ctacactaga agaacagtat ttggtatctg cgctctgctg aagccagtta
      661 ccttcggaaa aagagttggt agctcttgat ccggcaaaca aaccaccgct ggtagcggtg
      721 gtttttttgt ttgcaagcag cagattacgc gcagaaaaaa aggatctcaa gaagatcctt
      781 tgatcttttc tacggggtct gacgctcagt ggaacgaaaa ctcacgttaa gggattttgg
      841 tcatgagatt atcaaaaagg atcttcacct agatcctttt aaattaaaaa tgaagtttta
      901 aatcaatcta aagtatatat gagtaaactt ggtctgacag ttaccaatgc ttaatcagtg
      961 aggcacctat ctcagcgatc tgtctatttc gttcatccat agttgcctga ctccccgtcg
     1021 tgtagataac tacgatacgg gagggcttac catctggccc cagtgctgca atgataccgc
     1081 gagacccacg ctcaccggct ccagatttat cagcaataaa ccagccagcc ggaagggccg
     1141 agcgcagaag tggtcctgca actttatccg cctccatcca gtctattaat tgttgccggg
     1201 aagctagagt aagtagttcg ccagttaata gtttgcgcaa cgttgttgcc attgctacag
     1261 gcatcgtggt gtcacgctcg tcgtttggta tggcttcatt cagctccggt tcccaacgat
     1321 caaggcgagt tacatgatcc cccatgttgt gcaaaaaagc ggttagctcc ttcggtcctc
     1381 cgatcgttgt cagaagtaag ttggccgcag tgttatcact catggttatg gcagcactgc
     1441 ataattctct tactgtcatg ccatccgtaa gatgcttttc tgtgactggt gagtactcaa
     1501 ccaagtcatt ctgagaatag tgtatgcggc gaccgagttg ctcttgcccg gcgtcaatac
     1561 gggataatac cgcgccacat agcagaactt taaaagtgct catcattgga aaacgttctt
     1621 cggggcgaaa actctcaagg atcttaccgc tgttgagatc cagttcgatg taacccactc
     1681 gtgcacccaa ctgatcttca gcatctttta ctttcaccag cgtttctggg tgagcaaaaa
     1741 caggaaggca aaatgccgca aaaaagggaa taagggcgac acggaaatgt tgaatactca
     1801 tactcttcct ttttcaatat tattgaagca tttatcaggg ttattgtctc atgagcggat
     1861 acatatttga atgtatttag aaaaataaac aaataggggt tccgcgcaca tttccccgaa
     1921 aagtgccacc tgacgtctaa gaaaccatta ttatcatgac attaacctat aaaaataggc
     1981 gtatcacgag gccctttcgt ctcgcgcgtt tcggtgatga cggtgaaaac ctctgacaca
     2041 tgcagctccc ggagacggtc acagcttgtc tgtaagcgga tgccgggagc agacaagccc
     2101 gtcagggcgc gtcagcgggt gttggcgggt gtcggggctg gcttaactat gcggcatcag
     2161 agcagattgt actgagagtg caccatatgc ggtgtgaaat accgcacaga tgcgtaagga
     2221 gaaaataccg catcaggaaa ttgtaagcgt taatattttg ttaaaattcg cgttaaattt
     2281 ttgttaaatc agctcatttt ttaaccaata ggccgaaatc ggcaaaatcc cttataaatc
     2341 aaaagaatag accgagatag ggttgagtgt tgttccagtt tggaacaaga gtccactatt
     2401 aaagaacgtg gactccaacg tcaaagggcg aaaaaccgtc tatcagggcg atggcccact
     2461 acgtgaacca tcaccctaat caagtttttt ggggtcgagg tgccgtaaag cactaaatcg
     2521 gaaccctaaa gggagccccc gatttagagc ttgacgggga aagccggcga acgtggcgag
     2581 aaaggaaggg aagaaagcga aaggagcggg cgctagggcg ctggcaagtg tagcggtcac
     2641 gctgcgcgta accaccacac ccgccgcgct taatgcgccg ctacagggcg cgtccattcg
     2701 ccattcaggc tgcgcaactg ttgggaaggg cgatcggtgc gggcctcttc gctattacgc
     2761 cagctggcga aagggggatg tgctgcaagg cgattaagtt gggtaacgcc agggttttcc
     2821 cagtcacgac gttgtaaaac gacggccagt gaattgtaat acgactcact atagggcgaa
     2881 ttctcatgtt tgacagctta tcatcgataa gcttcagctg gatccagaca tgataagata
     2941 cattgatgag tttggacaaa ccacaactag aatgcagtga aaaaaatgct ttatttgtga
     3001 aatttgtgat gctattgctt tatttgtaac cattataagc tgcaataaac aagttaacaa
     3061 caacaattgc attcatttta tgtttcaggt tcagggggag gtgtgggagg ttttttaaag
     3121 caagtaaaac ctctacaaat gtggtatggc tgattatgat catgaacaga ctgtgaggac
     3181 tgaggggcct gaaatgagcc ttgggactgt gaatcaatgc ctgtttcatg ccctgagtct
     3241 tccatgttct tctccccacc atcttcattt ttatcagcat tttcctggct gtcttcatca
     3301 tcatcatcac tgtttcttag ccaatctaaa actccaattc ccatagccac attaaacttc
     3361 attttttgat acactgacaa actaaactct ttgtccaatc tctctttcca ctccacaatt
     3421 ctgctctgaa tactttgagc aaactcagcc acaggtctgt accaaattaa cataagaagc
     3481 aaagcaatgc cactttgaat tattctcttt tctaacaaaa actcactgcg ttccaggcaa
     3541 tgctttaaat aatctttggg cctaaaatct atttgtttta caaatctggc ctgcagtgtt
     3601 ttaggcacac tgtactcatt catggtgact attccagggg gaaatatttg agttctttta
     3661 tttaggtgtt tcttttctaa gtttacctta acactgccat ccaaataatc ccttaaattg
     3721 tccaggttat taattccctg acctgaaggc aaatctctgg actcccctcc agtgcccttt
     3781 acatcctcaa aaactactaa aaactggtca atagctactc ctagctcaaa gttcagcctg
     3841 tccaagggca aattaacatt taaagctttc cccccacata attcaagcaa agcagctgct
     3901 aatgtagttt taccactatc aattggtcct ttaaacagcc agtatctttt tttaggaatg
     3961 ttgtacacca tgcattttaa aaagtcatac accactgaat ccattttggg caacaaacag
     4021 tgtagccaag caactccagc catccattct tctatgtcag cagagcctgt agaaccaaac
     4081 attatatcca tcctatccaa aagatcatta aatctgtttg ttaacatttg ttctctagtt
     4141 aattgtaggc tatcaacccg ctttttagct aaaacagtat caacagcctg ttggcatatg
     4201 gttttttggt ttttgctgtc agcaaatata gcagcatttg cataatgctt ttcatggtac
     4261 ttatagtggc tgggctgttc ttttttaata cattttaaac acatttcaaa actgtactga
     4321 aattccaagt acatcccaag caataacaac acatcatcac attttgtttc cattgcatac
     4381 tctgttacaa gcttccagga cacttgttta gtttcctctg cttcttctgg attaaaatca
     4441 tgctccttta acccacctgg caaactttcc tcaataacag aaaatggatc tctagtcaag
     4501 gcactataca tcaaatattc cttattaacc cctttacaaa ttaaaaagct aaaggtacac
     4561 aatttttgag catagttatt aatagcagac actctatgcc tgtgtggagt aagaaaaaac
     4621 agtatgttat gattataact gttatgccta cttataaagg ttacagaata tttttccata
     4681 attttcttgt atagcagtgc agctttttcc tttgtggtgt aaatagcaaa gcaagcaaga
     4741 gttctattac taaacacagc atgactcaaa aaacttagca attctgaagg aaagtccttg
     4801 gggtcttcta cctttctctt cttttttgga ggagtagaat gttgagagtc cgcggtagcc
     4861 tcatcatcac tcgagggcat ttcttctgag caaaacaggt tttcctcatt aaacgcgttc
     4921 caccactgct cccattcatc agttccatag gttggaatct aaaatacaca aacaattaga
     4981 atcagtagtt taacacatta tacacttaaa aattttatat ttaccttacc aggatttaag
     5041 gaagaagcaa atacctcagt tgcatcccag aagcctccaa agtcaggttg atgagcatat
     5101 tttactccat cttccatttt cttgtacaga gtattcattt tcttcatttt ttcttcatct
     5161 cctcctttat caggatgaaa ctccttgcat ttttttaaat atgcctttct catcagagga
     5221 atattccccc aggcactcct ttcaagacct agaaggtcca ttagctgcaa agattcctct
     5281 ctgtttaaaa ctttatccat ctttgcaaag ctttttgcaa aagcctaggc ctccaaaaaa
     5341 gcctcctcac tacttctgga atagctcaga ggccgaggcg gcctcggcct ctgcataaat
     5401 aaaaaaaatt agtcagccat ggggcggaga atgggcggaa ctgggcggag ttaggggcgg
     5461 gatgggcgga gttaggggcg ggactatggt tgctgactaa ttgagatgca tgctttgcat
     5521 acttctgcct gctggggagc ctggggactt tccacacctg gttgctgact aattgagatg
     5581 catgctttgc atacttctgc ctgctgggga gcctggggac tttccacacc ctaactgaca
     5641 cacattccac agctggttct ttccgcctca gaaggtaccc ggggatcctc tagagtcgac
     5701 ctgcaggcat gcaagctttt gttcccttta gtgagggtta atttcgagct tggcgtaatc
     5761 atggtcatag ctgtttcctg tgtgaaattg ttatccgctc acaattccac acaacatacg
     5821 agccggaagc ataaagtgta aagcctgggg tgcctaatga gtgagctaac tcacattaat
     5881 tgcgttgcgc tcactgcccg ctttccagtc gggaaacctg tcgtgccagc tgcattaatg
     5941 aatcggccaa cgcgcgggga gaggcggttt gcgtattggg cgct
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
